Apex Microtechnology Power Operational (Linear) Amplifiers
Apex Microtechnology Power Operational (Linear) Amplifiers are a portfolio of products designed for applications that require high current and high voltage. These Apex Microtechnology amplifiers are offered in various high-reliability form factors with voltage rails from 5V to 2500V. These feature output currents from 0.01A to 100A (peak) and slew rates up to 3000V/us. These features provide a compact, proven solution for demanding precision power analog applications such as piezo actuation/positioning, electrostatic/magnetic deflection, and DC/servo motion control.
Additional Resources
eBook
Videos
Featured Products
Apex Microtechnology PA97 900V Power Amplifier
A low-cost solution for driving continuous output currents & pulse currents into capacitive loads.
Apex Microtechnology PA22 High Voltage Power Operational Amplifier
Optimized for applications where high speed and short-term power dissipation are a must.
Apex Microtechnology PA74/A & PA76/A Class C Power Amplifiers
Dual-power op-amps featuring 2.5A x 2 of continuous output current on 5V to 40V single supplies.
Apex Microtechnology PA09 Power Amplifiers
Feature a 2A continuous current, and a 5A peak current with 80V of power.
Apex Microtechnology PA10 High Temp Power Amplifiers
5A, 100V amplifiers with a 4MHz gain bandwidth.
Apex Microtechnology PA12 Class A/B Power Amplifiers
10A, 90V power operational amplifiers with low thermal resistance (1.4°C/W).
Apex Microtechnology PA61 90-V-Leistungsoperationsverstärker
Zur Ansteuerung von resistiven, induktiven und kapazitiven Lasten ausgelegt, 4 verfügbare Klassen, einschließlich Militär.
Apex Microtechnology PA85 High Voltage Power Operational Amplifiers
Feature a very high 1000V/µs slew rate targeted for high voltage applications.
Apex Microtechnology PA99 Power Operational Amplifiers
Ultra-high 2500V op-amps designed for output currents to target high voltage applications.
Apex Microtechnology PA164 Hochspannungs-Leistungs-Operationsverstärker
Verfügen über einen monolithischen Verstärkerkern, der für Leistungsapplikationen mit hoher Dichte ausgelegt ist.
Apex Microtechnology PA165 High Voltage Power Operational Amplifiers
Feature a monolithic amplifier core designed for high-density power applications.
Apex Microtechnology PA441 & PA443 350V Low Noise Power Amplifiers
Provides next-generation performance based on the PA34X product family.
Apex Microtechnology PA119 Video Power Operational Amplifiers
Designed to drive various loads from DC through the video frequency range.
Apex Microtechnology PA05 Power Operational Amplifiers
Extends the performance limits of power amplifiers in slew rate and power bandwidth.
Apex Microtechnology MP118 High Power Bandwidth Amplifiers
Provide a cost-effective solution in industrial applications.
Apex Microtechnology Piezo Drives
High-voltage, precision drive electronics for capacitive piezo-actuator loads.
Development Tools
Apex Microtechnology EK11 Evaluation Kit
For use with PA90, PA91, and PA98 operational amplifiers.

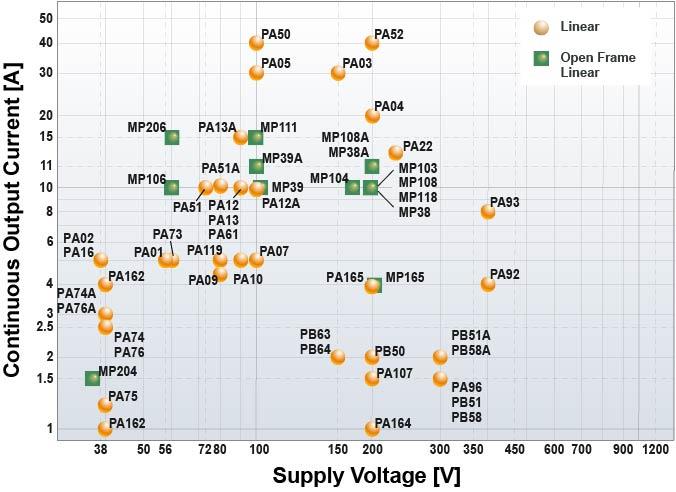

High Current Selector Matrix
High Voltage Selector Matrix
