Dialight 599 Single Color SMD LEDs with Lenses

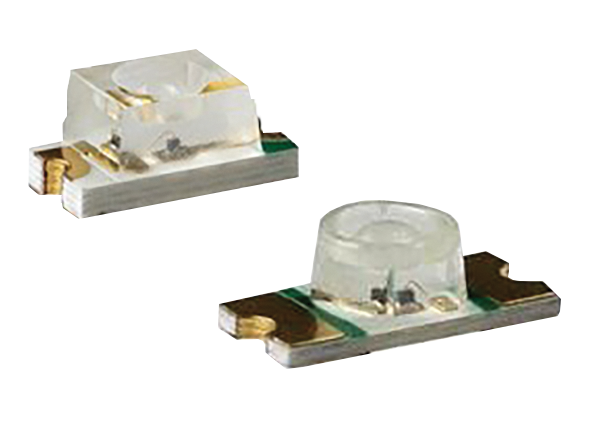

Dialight 599 Single Color SMD LEDs with Lenses are available with domed or rectangular lens shapes in a 1206 case size with 40°, 70°, and 140° viewing angle options. The surface mount, top view LEDs feature clear or water-clear lens transparency with orange, red, green, yellow, yellow-green, true green, blue, and cool white illumination. Operating within the -40°C to 85°C range, the 599 Single Color SMD LEDs with Lenses provide a 2.4V or 3.6V forward voltage, 20mA forward current, and a 72mW to 111mW power rating range.

Features

  • Dome or rectangular lens shapes
  • 1206 case size
  • Surface mount top view LEDs
  • Clear or water-clear lens transparency
  • Orange, red, green, yellow, yellow-green, true green, blue, and cool white illumination colors

Specifications

  • 2.4V or 3.6V forward voltage options
  • 20mA forward current
  • 465nm to 630nm wavelength/color temperature range
  • 72mW to 111mW power rating range
  • 50mcd to 917mcd luminous intensity range
  • 40°, 70°, and 140° viewing angle options
  • -40°C to 85°C operating temperature range

Datasheets

Related LEDs

Dialight 599 Series Single Color MicroLED SMD LEDs

Available in a variety of package sizes and colors including AllnGaP and InGaN technology.

Learn Moreüber Dialight 599 Series Single Color MicroLED SMD LEDs View Productsverwandt mit Dialight 599 Series Single Color MicroLED SMD LEDs

Dialight 599 Reverse Mount SMD LEDs

Designed for lighting the non-component side of a PCB and offers a 140° viewing angle.

Learn Moreüber Dialight 599 Reverse Mount SMD LEDs View Productsverwandt mit Dialight 599 Reverse Mount SMD LEDs
View Results ( 27 ) Page
Teilnummer Datenblatt Beschreibung Verpackung/Gehäuse Ansichtswinkel Lichtstärke Wellenlänge/Farbtemperatur Vf - Durchlassspannung
599-0130-137F 599-0130-137F Datenblatt Einfarbige LEDs leds SMD LED 0805 0.80mm ht Orange 7" Reel 0805 (2012 metric) 140 deg 125 cd 606 nm 2 V
599-0140-137F 599-0140-137F Datenblatt Einfarbige LEDs leds SMD LED 0805 0.80mm ht Yellow 7" Reel 0805 (2012 metric) 140 deg 150 cd 593 nm 2.1 V
599-0160-137F 599-0160-137F Datenblatt Einfarbige LEDs leds SMD LED 0805 0.80mm ht Yellow-Grn 7" Reel 0805 (2012 metric) 140 deg 80 cd 572 nm 2.2 V
599-0180-137F 599-0180-137F Datenblatt Einfarbige LEDs leds SMD LED 0805 0.80mm ht Green 525nm 7" Reel 0805 (2012 metric) 140 deg 500 cd 525 nm 3.2 V
599-0190-137F 599-0190-137F Datenblatt Einfarbige LEDs leds SMD LED 0805 0.80mm ht Blue 7" Reel 0805 (2012 metric) 140 deg 125 cd 470 nm 3.2 V
599-1090-147F 599-1090-147F Datenblatt Einfarbige LEDs leds SMD LED 0603 0.60mm ht Blue 7" Reel 0603 (1608 metric) 130 deg 72 cd 470 nm 3.3 V
599-1110-147F 599-1110-147F Datenblatt Einfarbige LEDs leds SMD LED 0805 2.0x1.3x0.8mm Red 7" Reel 0805 (2012 metric) 130 deg 112 cd 624 nm 2 V
599-1130-147F 599-1130-147F Datenblatt Einfarbige LEDs leds SMD LED 0805 2.0x1.3x0.8mm Orange 7" Reel 0805 (2012 metric) 130 deg 112 cd 605 nm 2 V
599-1140-147F 599-1140-147F Datenblatt Einfarbige LEDs leds SMD LED 0805 2.0x1.3x0.8mm Yellow 7" Reel 0805 (2012 metric) 130 deg 71 cd 589 nm 2 V
599-1160-147F 599-1160-147F Datenblatt Einfarbige LEDs leds SMD LED 0805 2.0x1.3x0.8mm Yellow-Grn 7"Reel 0805 (2012 metric) 130 deg 71 cd 571 nm 2.1 V
