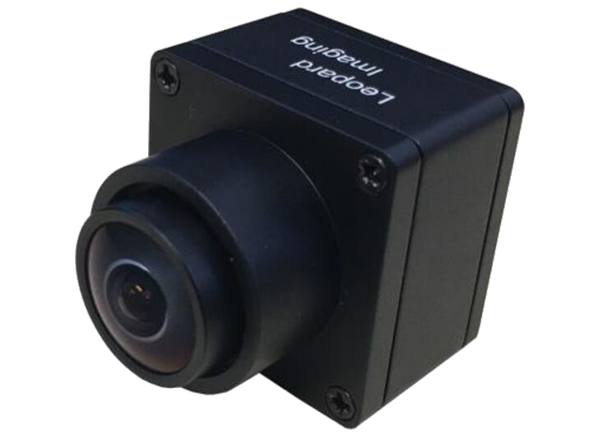

Leopard Imaging LI-OV2312-GMSL2-110H Camera
Leopard Imaging LI-OV2312-GMSL2-110H Camera features OmniVision CMOS 2M RGB-IR image sensor OV2312. This camera has 1600H x 1300V active pixels and a 3.0µm x 3.0µm pixel size. The LI-OV2312-GMSL2-110H camera operates at a 12V power supply voltage and -40°C to 85°C temperature range. This camera is available in 30mm x 30mm dimensions. The Leopard Imaging LI-OV2312-GMSL2-110H camera is ideally used for in-cabin monitoring, driver monitoring system (DMS), and video conferencing.
Features
- OmniVision CMOS 2M RGB-IR Image Sensor OV2312
- 1/2.9" optical format
- 1600 (H) x 1300 (V) resolution
- 3.0um x 3.0um pixel size
- Support global shutter
- RGB-IR sensor
- Output 10-bit raw data
- Support 9V to 19V power
- Lens - HFOV 110°
- GMSL2 serializer
- FAKRA Z TYPE connector
- Water Proof (IPX9K)
- -40° to 85°C operating temperature
- -40° to 125°C storage temperature
- 30mm (L) x 30mm (W) x 29.2mm (D) size
- 45g weight
Applications
- In-cabin monitoring
- Driver Monitoring System (DMS)
- Video conferencing
