Omron Electronics 2SMPB-01-01 Absolute Pressure Sensor

Omron Electronics 2SMPB-01-01 Absolute Pressure Sensor

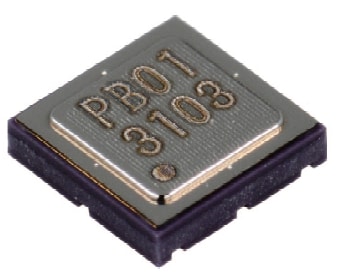

Omron Electronics 2SMPB-01-01 Absolute Pressure Sensor is a high accuracy and small size absolute pressure sensor with low current consumption. The 2SMPB-01-01 provides readings relative to a perfect vacuum to ±6Pa. The module is 3.8mm x 3.8mm x 1 mm maximum, small enough to integrate into portable instruments. It offers an I²C output for integration into digital electronics. This device is ideal for applications that require lower RMS noise and or battery power.

Features

Measure absolute pressure and temperature with high accuracy.
Built in low noise 24 bits ADC.
Digital control and output via I²C interface
Automatically power down non working circuit to minimize current consumption
Individual calibration parameters stored in OTP.*
* One Time Programmable Non Volatile Memory

Application Examples
