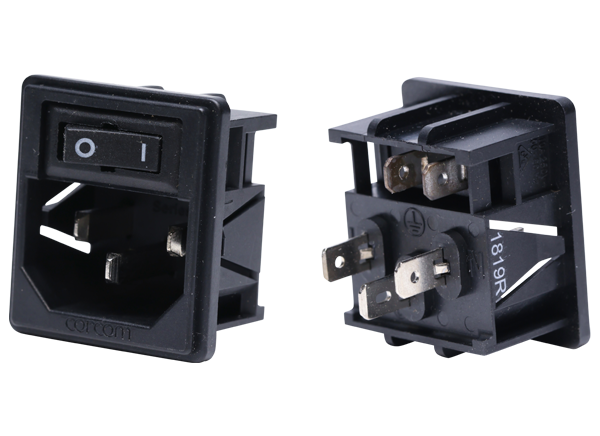

TE Connectivity CU Power Entry Modules
TE Connectivity's Corcom CU Power Entry Modules provide power entry for equipment designed for popular 1U (1 3/4") height equipment racks and are available in both unfiltered and filtered versions. With an extremely compact size, the filtered version provides complete shielding, shrouded quick connect terminals, and basic filtering applications requiring 1A to 15A current carrying capabilities. The filtered versions also offer a new rear-mount style for enhanced EMI shielding and a flush appearance.
TE's Corcom CU offers a modular design in snap-in and flanged mounting options. The unfiltered version has the option of 3 different snap-in configurations making it possible to use a variety of different panel cut-outs. The CU series accepts common EN 60320 power cords for international compatibility.
Features
- Compact 1U design
- Filtered and unfiltered
- Shrouded quick-connect terminals
- Various mounting styles
- Lower power dissipation
- Higher system efficiency
- Lower cooling demand
- UL Recognized, CSA Certified, and VDE Approved
Specifications
- 50/60Hz operating frequency
- 120/250VAC operating voltages
- 1A to 15A current ratings
- 50A inrush SPST switch
