TE Connectivity / Schaffner FN9280 & FN9290 Ultra-Compact IEC Inlet Filters

TE Connectivity / Schaffner FN9280 and FN9290 Ultra-Compact IEC Inlet Filters are versatile power entry modules available as a single-stage filter (FN 9280) or dual-stage filter (FN 9290). The inlet filters feature rated currents up to 10A, a dual fuse holder, a 2-pole rocker switch, good conducted attenuation performance, and Faston or spring cage terminals. These power modules also offer a maximum continuous operating voltage of 250VAC, operating temperature range from -25°C to +85°C (25/85/21), and deep-drawn iron-sheet housing for the best possible shielding against magnetic fields.

Features

  • Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
  • Deep-drawn iron-sheet housing for the best possible shielding against magnetic fields
  • Rear/front flange mounting or snap-in versions
  • Dual fuse holder with a spare fuse holder
  • 2-pole rocker switch
  • Faston or spring cage terminals for more flexible assembly
  • Medical version (B Type) according IEC/EN60601-1
  • Ultra-compact design
  • Filters
    • Single-stage FN 9280
    • Dual-stage FN 9290
  • RoHS compliant

Applications

  • Portable electrical and electronic equipment
  • Consumer goods
  • EDP and office equipment
  • Test and measurement equipment
  • Single-phase and switch-mode power supplies
  • Medical electrical devices (MD) and In-Vitro-Diagnostics (IVD) equipment

Specifications

  • 250VAC, 50/60Hz maximum continuous operating voltage
  • 50Hz to 400Hz operating frequency range
  • 1A to 10A rated currents at +40°C
  • Leakage currents
    • <500µA at 250VAC/50Hz for standard models
    • <5µA at 250VAC/50Hz for medical models
  • Protection ratings
    • IP40 according to IEC 60529 (front side)
    • IP20 terminals, spring cage safe against finger touch
  • 0.2mm2 to 1.5mm2, 24AWG to 16AWG spring cage wire range, single or flexible wire
  • -25°C to +85°C temperature range
  • Fuse holder fits 2 fuses ø5mm x 20mm maximum, 250V
  • 2-pole rocker switch
    • on-illuminated
    • l - 0 marking
    • USA and Canada switch ratings
      • 10A, 125VAC
      • 10A, 250VAC
      • 1/3HP
    • Europe switch rating of 10A (4A), 250VAC
  • Electrical
    • 82A inrush current
    • On-off operations
      • 6000 per UL 1054
      • 10,000 per ENEC
  • 50,000 mechanical life cycles
  • UL94V-2 or better flammability rating

Videos

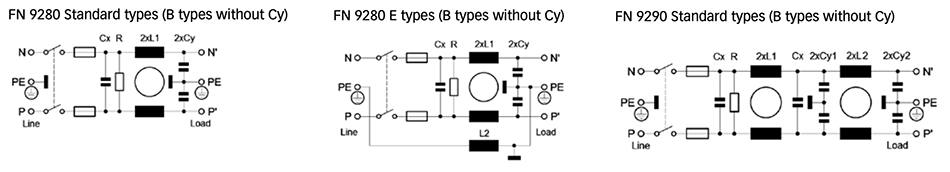

Typical Electrical Schematic

Schematic - TE Connectivity / Schaffner FN9280 & FN9290 Ultra-Compact IEC Inlet Filters
