Terasic Technologies Comet A65 System-On-Module (SOM)

Terasic Comet A65 System-On-Module (SOM) is powered by Altera’s large Agilex® 5 System-on-Chip (SoC) FPGA with 656K logic elements. The SOM integrates an HPS/ARM subsystem, two high-speed SEAM8 extension connectors, and three 4GB high-throughput LPDDR4, supporting 71 LVDS, 245 LVCMOS, and 24 transceivers. The Terasic Comet A65 SOM enables embedded software/systems developers without FPGA expertise to develop various industrial applications, such as robotics, medical equipment, industrial communication/control, machine vision, smart cameras, and smart cities.

Features

  • FPGA device
    • A5ED065BB32AE4SR0 (Agilex 5 E-series device Group B)
    • 75mm x 75mm module size
    • 102 HVIO (3.3V x4, 1.8/2.5/3.3 x98)
    • 143 HSIO (71 LVDS)
    • 48 HPSIO
    • 24 transceivers
    • Interface with two SEAM8 connectors (4x100 pin)
    • Board management system
      • Power and temperature monitor
      • Auto fan control
      • Auto shutdown when the power or temperature is abnormal
  • HPS side
    • LPDDR4-A - 4GB DDR4 with 32-bit data bus (no ECC), shared with the FPGA
    • 48 HPS IO connected to ADF6 connector
    • 8GB eMMC (expandable) + eMMC SEL switch
  • FPGA side
    • LED x1, KEY x1
    • Fixed 50/100MHz clock
    • Programmer clock generator for transceiver reference clock
    • LPDDR4-A - 4GB DDR4 with 32-bit data bus (no ECC), shared with the HPS
    • LPDDR4-B - 4GB DDR4 with 32-bit data bus (no ECC)
    • LPDDR4-C - 4GB DDR4 with 32-bit data bus (no ECC)
    • 102-pin HVIO and 143-pin HSIO connected to the SEAM8 connector
    • 24 transceivers and four reference clocks connected to SEAM8 2 connectors

Applications

  • Robotics
  • Medical equipment
  • Industrial communication and control
  • Machine vision
  • Smart cameras
  • Smart cities

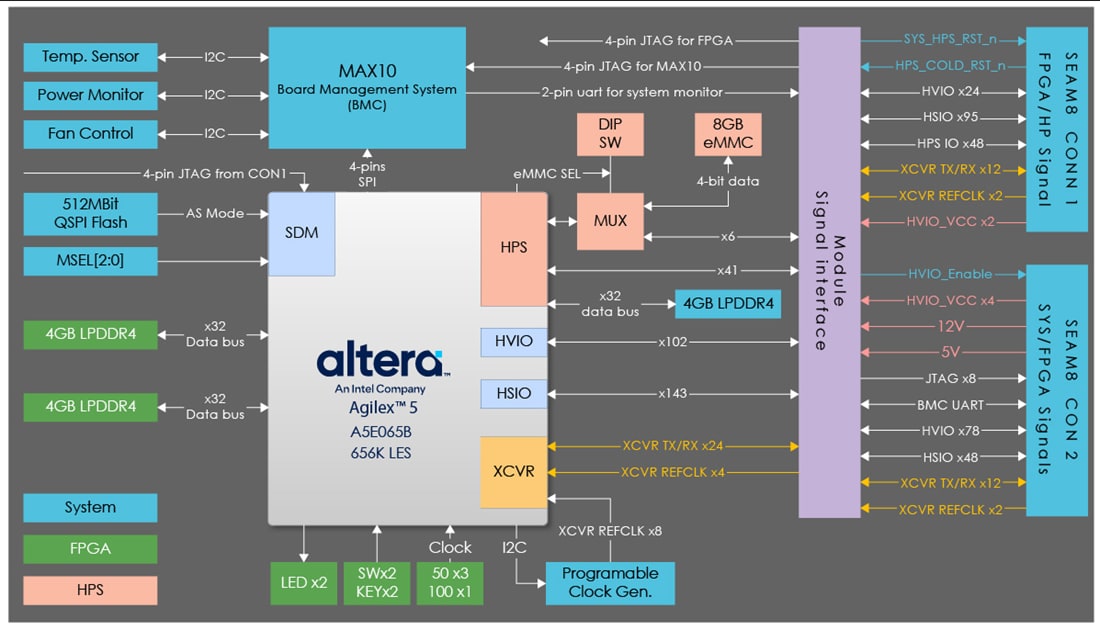

Block Diagram

Block Diagram - Terasic Technologies Comet A65 System-On-Module (SOM)

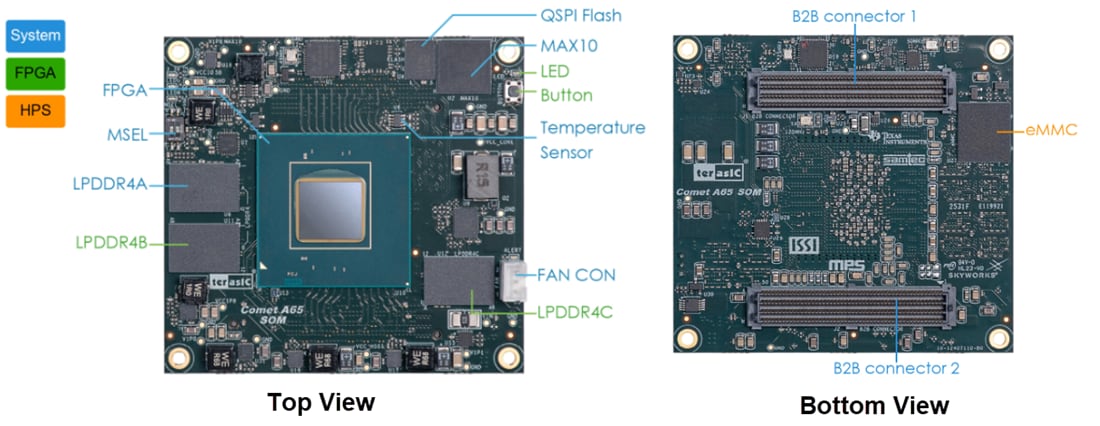

Board Layout

Mechanical Drawing - Terasic Technologies Comet A65 System-On-Module (SOM)

Development Tool

Terasic Technologies Comet A65 SOM Carrier Board

Designed to help users evaluate the features and capabilities of the Comet A65 SOM module.

Learn Moreüber Terasic Technologies Comet A65 SOM Carrier Board View Productsverwandt mit Terasic Technologies Comet A65 SOM Carrier Board
