Texas Instruments TPS561300 Step-Down Converter
Texas Instruments TPS561300 Step-Down Converter is a 4.5V to 30V input, 1A synchronous buck converter designed for compact, EMI-friendly DC/DC power conversion. The device integrates two switching FETs, internal loop compensation, and a 5ms internal soft start to reduce external component count and support a small PCB footprint.
The TPS561300 uses pulse-frequency modulation for high light-load efficiency and employs frequency-spread spectrum to reduce EMI. The TI TPS561300 Step-Down Converter also uses peak current mode control, cycle-by-cycle current limiting, low-side MOSFET freewheeling current limiting, and hiccup mode protection to support reliable operation during overload conditions.
The converter is ideal for 12V and 24V distributed power-bus supplies, industrial applications, white goods, audio equipment, set-top boxes, digital televisions, and printers. The TPS561300 is available in an SOT-23 package and operates over a temperature range of -40°C to +150°C.
Features
- Input voltage range of 4.5V to 30V
- Continuous output current of up to 1A
- Pulse frequency modulation for high light-load efficiency
- Peak current mode control with internal loop compensation
- Integrated switching FETs for high power density and reduced PCB footprint
- Internal soft start of 5ms
- Frequency spread spectrum for EMI reduction
- Overcurrent protection for both MOSFETs with hiccup mode protection
- Non-latched protection for OTP, OCP, OVP, and UVLO
- Prebias startup and adjustable UVLO support
Applications
- Consumer
- Audio
- Set-top box (STB), digital television (DTV)
- Printer
- 12V and 24V distributed power-bus supply
- Industrial
- White goods
Specifications
- Buck topology
- Output voltage range of 0.6V to 30V
- Typical quiescent current of 45μA
- Maximum duty cycle of 100%
- Control mode of current mode
- Operating temperature range of -40°C to +150°C
- SOT-23, 6-pin package
Simplified Schematic

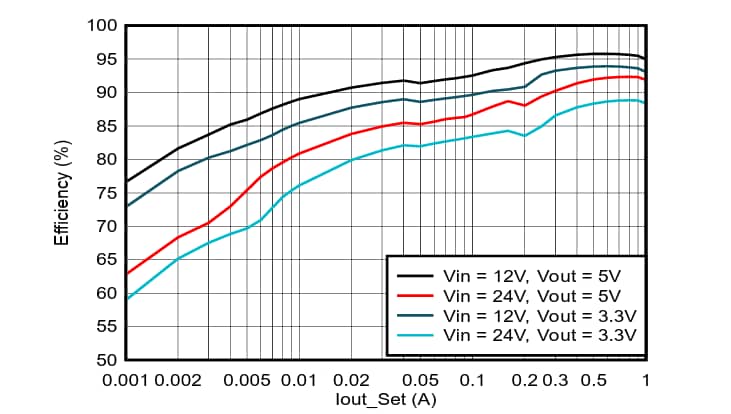

Efficiency vs Output Current
